Introduction

This project addresses a binary classification problem: predicting whether a credit card client will default on their payment in the next month. It uses the Default of Credit Card Clients Dataset, which contains 30,000 records and 24 features, including demographic information, payment history, and billing amounts from April to September 2005.

The target variable is default.payment.next.month, indicating whether the client defaulted (1=yes, 0=no). The remaining features provide monthly financial and repayment data that help inform this prediction task.

This dataset was originally featured in a research study comparing classification models for default prediction. Results in this project may be compared against findings from the paper.

import pandas as pd
import altair_ally as aly
import matplotlib.pyplot as plt
import shap
from sklearn.model_selection import RandomizedSearchCV, cross_val_predict, cross_val_score, cross_validate, train_test_split
from sklearn.pipeline import Pipeline, make_pipeline
from sklearn.compose import ColumnTransformer, make_column_transformer
from sklearn.preprocessing import KBinsDiscretizer, OneHotEncoder, OrdinalEncoder, StandardScaler, PolynomialFeatures
from sklearn.impute import SimpleImputer
from sklearn.feature_extraction.text import CountVectorizer
from sklearn.feature_selection import RFE, RFECV, SelectFromModel, SequentialFeatureSelector
from sklearn.metrics import (
    ConfusionMatrixDisplay,
    confusion_matrix,
    classification_report,
    PrecisionRecallDisplay,
    RocCurveDisplay,
    average_precision_score,
    roc_auc_score,
    precision_score,
    recall_score,
    f1_score,
)
from sklearn.dummy import DummyClassifier
from sklearn.linear_model import LogisticRegression, Ridge, RidgeCV, ElasticNetCV, LassoCV
from sklearn.ensemble import RandomForestClassifier, ExtraTreesClassifier
from scipy.stats import uniform, lognorm, loguniform, randint
from lightgbm.sklearn import LGBMClassifier
from sklearn.svm import LinearSVC
from xgboost import XGBClassifier
from sklearn.inspection import permutation_importance
from sklearn.model_selection import train_test_split

aly.alt.data_transformers.disable_max_rows()

DataTransformerRegistry.enable('default')

Data description

The columns ID, LIMIT_BAL, SEX, EDUCATION, MARRIAGE, and AGE are self-explanatory. Columns PAY_0 to PAY_6 indicate the repayment status for each month (-1 = paid duly, 1 = payment delayed by one month, 2 = payment delayed by two months, …, 8 = payment delayed by eight months, and 9 = payment delayed by nine months or more), which are ordinary columns. Columns BILL_AMT1 to BILL_AMT6 represent the amount on the bill statement for each month. Columns PAY_AMT1 to PAY_AMT6 represent the amount of the previous payment for each month.

Preliminary analysis

• PAY, BILL_AMT, PAY_AMT creates an interesting problem for feature engineering. Should these be treated as individual months or some kind of time-series feature to spot trends within the 6 month period.
• Each month has a different number of days. Do we need to look at the data on a per day basis? Does the granularity matter?
• Should we look at relative proportions instead? For example, PAY_AMT/BILL_AMT instead of the absolute value of PAY_AMT.
• Education has 1 value for “others” and 2 different values for “unknown”, is there a difference here?
• PAY shows delays for up to 9 months but our data only spans across 6 months. This means for customers who are 7-9 months late, we would have some additional insights in to their prior behaviour before the 6 months period but for others we would not.
• Should AGE be put in to age groups instead?
• Drop SEX because it’s not appropriate to use gender as a basis to determine whether someone would default.
• The dataset only covers data for each month from April 2005 to September 2005, which is somewhat limited.
• All features are numeric.
• No missing values. Therefore we assume all customers have been at the bank for at least 6 months.
• There is a class imbalance in the TARGET column, which we will address in the following sections.

df = pd.read_csv('data/UCI_Credit_Card.csv')

# Drop ID because it's a unique identifier. It is not useful as a predictor
df.drop(columns=['ID'], inplace = True)

# df.rename(columns={'default.payment.next.month' : 'DEFAULT', 'PAY_0' : 'PAY_1'}, inplace = True)

# Rename columns
df.rename(
    columns = {
        "default.payment.next.month": "TARGET",
        "PAY_0": "REPAY_STATUS_SEP",
        "PAY_2": "REPAY_STATUS_AUG",
        "PAY_3": "REPAY_STATUS_JUL",
        "PAY_4": "REPAY_STATUS_JUN",
        "PAY_5": "REPAY_STATUS_MAY",
        "PAY_6": "REPAY_STATUS_APR",
        "BILL_AMT1": "BILL_AMT_SEP",
        "BILL_AMT2": "BILL_AMT_AUG",
        "BILL_AMT3": "BILL_AMT_JUL",
        "BILL_AMT4": "BILL_AMT_JUN",
        "BILL_AMT5": "BILL_AMT_MAY",
        "BILL_AMT6": "BILL_AMT_APR",
        "PAY_AMT1": "PAY_AMT_SEP",
        "PAY_AMT2": "PAY_AMT_AUG",
        "PAY_AMT3": "PAY_AMT_JUL",
        "PAY_AMT4": "PAY_AMT_JUN",
        "PAY_AMT5": "PAY_AMT_MAY",
        "PAY_AMT6": "PAY_AMT_APR",
    },
    inplace = True
)

df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 30000 entries, 0 to 29999
Data columns (total 24 columns):
 #   Column            Non-Null Count  Dtype
---  ------            --------------  -----
 0   LIMIT_BAL         30000 non-null  float64
 1   SEX               30000 non-null  int64
 2   EDUCATION         30000 non-null  int64
 3   MARRIAGE          30000 non-null  int64
 4   AGE               30000 non-null  int64
 5   REPAY_STATUS_SEP  30000 non-null  int64
 6   REPAY_STATUS_AUG  30000 non-null  int64
 7   REPAY_STATUS_JUL  30000 non-null  int64
 8   REPAY_STATUS_JUN  30000 non-null  int64
 9   REPAY_STATUS_MAY  30000 non-null  int64
 10  REPAY_STATUS_APR  30000 non-null  int64
 11  BILL_AMT_SEP      30000 non-null  float64
 12  BILL_AMT_AUG      30000 non-null  float64
 13  BILL_AMT_JUL      30000 non-null  float64
 14  BILL_AMT_JUN      30000 non-null  float64
 15  BILL_AMT_MAY      30000 non-null  float64
 16  BILL_AMT_APR      30000 non-null  float64
 17  PAY_AMT_SEP       30000 non-null  float64
 18  PAY_AMT_AUG       30000 non-null  float64
 19  PAY_AMT_JUL       30000 non-null  float64
 20  PAY_AMT_JUN       30000 non-null  float64
 21  PAY_AMT_MAY       30000 non-null  float64
 22  PAY_AMT_APR       30000 non-null  float64
 23  TARGET            30000 non-null  int64
dtypes: float64(13), int64(11)
memory usage: 5.5 MB

Let’s check if the dataset contains any null values.

print(df.isnull().sum())

LIMIT_BAL           0
SEX                 0
EDUCATION           0
MARRIAGE            0
AGE                 0
REPAY_STATUS_SEP    0
REPAY_STATUS_AUG    0
REPAY_STATUS_JUL    0
REPAY_STATUS_JUN    0
REPAY_STATUS_MAY    0
REPAY_STATUS_APR    0
BILL_AMT_SEP        0
BILL_AMT_AUG        0
BILL_AMT_JUL        0
BILL_AMT_JUN        0
BILL_AMT_MAY        0
BILL_AMT_APR        0
PAY_AMT_SEP         0
PAY_AMT_AUG         0
PAY_AMT_JUL         0
PAY_AMT_JUN         0
PAY_AMT_MAY         0
PAY_AMT_APR         0
TARGET              0
dtype: int64

Check if the target column is balanced.

df["TARGET"].value_counts()

TARGET
0    23364
1     6636
Name: count, dtype: int64

Data splitting

Split the data into train and test portions.

train_df, test_df = train_test_split(df, test_size = 0.3, random_state = 123)

Exploratory data analysis

Perform exploratory data analysis on the train set.

Summary Statistics

• REPAY_STATUS has a minimum of -2, which is outside the range of the data description.

train_df.iloc[:,0:11].describe()

	LIMIT_BAL	SEX	EDUCATION	MARRIAGE	AGE	REPAY_STATUS_SEP	REPAY_STATUS_AUG	REPAY_STATUS_JUL	REPAY_STATUS_JUN	REPAY_STATUS_MAY	REPAY_STATUS_APR
count	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000
mean	167880.651429	1.600762	1.852143	1.554000	35.500810	-0.015429	-0.137095	-0.171619	-0.225238	-0.264429	-0.295095
std	130202.682167	0.489753	0.792961	0.521675	9.212644	1.120465	1.194506	1.196123	1.168556	1.137205	1.147992
min	10000.000000	1.000000	0.000000	0.000000	21.000000	-2.000000	-2.000000	-2.000000	-2.000000	-2.000000	-2.000000
25%	50000.000000	1.000000	1.000000	1.000000	28.000000	-1.000000	-1.000000	-1.000000	-1.000000	-1.000000	-1.000000
50%	140000.000000	2.000000	2.000000	2.000000	34.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000
75%	240000.000000	2.000000	2.000000	2.000000	41.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000
max	1000000.000000	2.000000	6.000000	3.000000	79.000000	8.000000	8.000000	8.000000	8.000000	8.000000	8.000000

train_df.iloc[:,11:].describe()

	BILL_AMT_SEP	BILL_AMT_AUG	BILL_AMT_JUL	BILL_AMT_JUN	BILL_AMT_MAY	BILL_AMT_APR	PAY_AMT_SEP	PAY_AMT_AUG	PAY_AMT_JUL	PAY_AMT_JUN	PAY_AMT_MAY	PAY_AMT_APR	TARGET
count	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000	2.100000e+04	21000.000000	21000.000000	21000.000000	21000.000000	21000.000000
mean	51107.566762	49126.824810	47010.414095	43486.610905	40428.518333	38767.202667	5673.585143	5.895027e+03	5311.432286	4774.021381	4751.850095	5237.762190	0.223238
std	73444.143025	71400.032096	69035.759516	64843.303993	61187.200817	59587.689549	17033.241454	2.180143e+04	18377.997079	15434.136142	15228.193125	18116.846563	0.416427
min	-15308.000000	-67526.000000	-157264.000000	-50616.000000	-61372.000000	-339603.000000	0.000000	0.000000e+00	0.000000	0.000000	0.000000	0.000000	0.000000
25%	3649.250000	2925.750000	2663.750000	2293.750000	1739.500000	1215.750000	1000.000000	8.200000e+02	390.000000	266.000000	234.000000	110.750000	0.000000
50%	22284.000000	21002.500000	20088.500000	19102.500000	18083.000000	16854.500000	2100.000000	2.007000e+03	1809.500000	1500.000000	1500.000000	1500.000000	0.000000
75%	66979.750000	63795.250000	59895.000000	54763.250000	50491.000000	49253.750000	5007.250000	5.000000e+03	4628.500000	4021.250000	4016.000000	4000.000000	0.000000
max	964511.000000	983931.000000	855086.000000	891586.000000	927171.000000	961664.000000	873552.000000	1.227082e+06	896040.000000	621000.000000	426529.000000	528666.000000	1.000000

Correlation

• We see BILL_AMT has a strong collinearity with the BILL_AMT from the prior months. Same with REPAY_STATUS. We may need to find a way to address the collinearity.

aly.corr(train_df)

Distribution Visualization

• Class imbalance with TARGET

• Proportion of defaults higher in 50+ age group

• Lower default with married vs single

• Even though REPAY_STATUS has a range from -2 to 9, most values cluster around -2 to 2

aly.dist(train_df, 'TARGET', mark='bar')

aly.dist(train_df, 'TARGET')

Feature engineering

Added Features

• AGE_GROUP: New column to use age groups instead of age since age is too granular.

• PRO_BAL: New columns for balance owed as a proportion of their credit limit. A person who is spending close to their limit every month could be less likely to pay off their balance when compared to a person who spends only a fraction of their limit.

# Create age groups instead of using age
age_bins = [21, 30, 40, 50, 60, 100]
age_labels = ['21-30', '31-40', '41-50', '51-60', '61+']
train_df['AGE_GROUP'] = pd.cut(train_df['AGE'], bins=age_bins, labels=age_labels, right=False)
test_df['AGE_GROUP'] = pd.cut(test_df['AGE'], bins=age_bins, labels=age_labels, right=False)

# Create new columns that contain proportion of balance relative to credit limit
train_df = train_df.assign(
    PROP_BAL_SEP = train_df['BILL_AMT_SEP'] / train_df['LIMIT_BAL'],
    PROP_BAL_AUG = train_df['BILL_AMT_AUG'] / train_df['LIMIT_BAL'],
    PROP_BAL_JUL = train_df['BILL_AMT_JUL'] / train_df['LIMIT_BAL'],
    PROP_BAL_JUN = train_df['BILL_AMT_JUN'] / train_df['LIMIT_BAL'],
    PROP_BAL_MAY = train_df['BILL_AMT_MAY'] / train_df['LIMIT_BAL'],
    PROP_BAL_APR = train_df['BILL_AMT_APR'] / train_df['LIMIT_BAL']
)

test_df = test_df.assign(
    PROP_BAL_SEP = test_df['BILL_AMT_SEP'] / test_df['LIMIT_BAL'],
    PROP_BAL_AUG = test_df['BILL_AMT_AUG'] / test_df['LIMIT_BAL'],
    PROP_BAL_JUL = test_df['BILL_AMT_JUL'] / test_df['LIMIT_BAL'],
    PROP_BAL_JUN = test_df['BILL_AMT_JUN'] / test_df['LIMIT_BAL'],
    PROP_BAL_MAY = test_df['BILL_AMT_MAY'] / test_df['LIMIT_BAL'],
    PROP_BAL_APR = test_df['BILL_AMT_APR'] / test_df['LIMIT_BAL']
)

X_train = train_df.drop(columns = 'TARGET')
y_train = train_df['TARGET']
X_test = test_df.drop(columns = 'TARGET')
y_test = test_df['TARGET']

Preprocessing and transformations

numerical_features = ['PAY_AMT_SEP', 'PAY_AMT_AUG', 'PAY_AMT_JUL', 'PAY_AMT_JUN', 'PAY_AMT_MAY', 'PAY_AMT_APR', 'PROP_BAL_SEP',
                    'PROP_BAL_AUG', 'PROP_BAL_JUL', 'PROP_BAL_JUN', 'PROP_BAL_MAY','PROP_BAL_APR']
categorical_features = ['EDUCATION', 'MARRIAGE', 'REPAY_STATUS_SEP', 'REPAY_STATUS_AUG', 'REPAY_STATUS_JUL',
                        'REPAY_STATUS_JUN', 'REPAY_STATUS_MAY', 'REPAY_STATUS_APR', 'AGE_GROUP']
drop_features = ['AGE', 'SEX', 'LIMIT_BAL', 'BILL_AMT_SEP', 'BILL_AMT_AUG', 'BILL_AMT_JUL', 'BILL_AMT_JUN', 'BILL_AMT_MAY', 'BILL_AMT_APR']

preprocessor = make_column_transformer(
    (StandardScaler(), numerical_features),
    (OneHotEncoder(handle_unknown='ignore'), categorical_features),
    ('drop', drop_features)
)

Baseline model

Dummy Baseline

• Since DummyClassifier predicts the most frequent class which is 0 (no payment default), there are no true positives and the f1 score is 0.

dummy = make_pipeline(
    preprocessor,
    DummyClassifier())

dummy.fit(X_train, y_train)
scoring_metrics = "f1"

cross_val_results = {}
cross_val_results['dummy'] = pd.DataFrame(cross_validate(dummy, X_train, y_train, scoring=scoring_metrics, return_train_score=True)).agg(['mean', 'std']).round(3).T
cross_val_results['dummy']

	mean	std
fit_time	0.015	0.003
score_time	0.005	0.001
test_score	0.000	0.000
train_score	0.000	0.000

Linear models

• With a linear model using LogisticRegression, we’ve achieved a f1 score of 0.47 with default parameters and 0.54 after hyperparameter optimization. This low score could be caused by non-linear relationships not captured by the model.
• The standard deviation of the score is fairly low so we know the score obtained isn’t caused by a random lucky split.
• Optimized model uses class_weight = balanced, indicating the class imbalanced needs to be considered for our final model as well.

# Source: Modified based off of DSCI 573 Lab 1 Solution
def score_with_metrics(models, preprocessor, scoring="f1"):
    """
    Return cross-validation scores for given models as a dataframe.

    Parameters
    ----------
    models : dict
        a dictionary with names and scikit-learn models
    scoring : list/dict/string
        scoring parameter values for cross-validation

    Returns
    ----------
    pd.DataFrame
        Dataframe containing scoring metrics for all models

    """
    results_df = {}
    for (name, model) in models.items():
        pipeline = make_pipeline(preprocessor, model)
        print(f"Scoring {name}...")
        scores = cross_validate(
            pipeline, X_train, y_train, return_train_score=True, scoring=scoring
        )
        df = pd.DataFrame(scores)
        results_df[name] = df.mean()
    print("Scoring complete.")
    return pd.DataFrame(results_df)

def perform_random_search(estimators, param_distributions, n_iter, scoring='f1'):
    """
    Perform RandomizedSearchCV for multiple models and return the best parameters for each model.

    Parameters
    ----------
    estimators : dict
        A dictionary where keys are esimators and values are estimators (models or pipelines)
    param_distributions : dict
        A dictionary where keys are model names (same as in `models`) and values are parameter distributions.
    n_iter : int
        Number of CV iterations
    scoring : str
        Scoring metric for evaluation. Default is 'f1'.
    n_iter : int
        Number of parameter settings sampled. Default is 20.

    Returns
    ----------
    pd.DataFrame
        Dataframe containing best parameters for all models
    """
    results = {}

    for name, estimator in estimators.items():
        print(f"Performing RandomizedSearchCV for {name}...")

        param_dist = param_distributions.get(name, {})
        random_search = RandomizedSearchCV(
            estimator=estimator,
            param_distributions=param_dist,
            n_iter=n_iter,
            scoring=scoring,
            n_jobs=-1,
            return_train_score=True
        )
        random_search.fit(X_train, y_train)
        results[name] = {
            'fit_time': random_search.cv_results_['mean_fit_time'][random_search.best_index_],
            'score_time': random_search.cv_results_['mean_score_time'][random_search.best_index_],
            'test_score': random_search.cv_results_['mean_test_score'][random_search.best_index_],
            'test_score_std': random_search.cv_results_['std_test_score'][random_search.best_index_],
            'train_score': random_search.cv_results_['mean_train_score'][random_search.best_index_],
            'train_score_std': random_search.cv_results_['std_train_score'][random_search.best_index_],
            **random_search.best_params_
        }
    print("Search complete.")
    return pd.DataFrame(results)

logreg_results = score_with_metrics({'LogReg' : LogisticRegression(random_state=123, max_iter=1000)}, preprocessor, scoring=scoring_metrics)
logreg_results

Scoring LogReg...
Scoring complete.

	LogReg
fit_time	0.062460
score_time	0.005010
test_score	0.470791
train_score	0.475486

param_dist = { 'LogReg_Opt' : {
        'logisticregression__C': loguniform(1e-4, 1e4),
        'logisticregression__class_weight': [None, 'balanced']
    }
}

logreg = make_pipeline(
    preprocessor,
    LogisticRegression(random_state=123, max_iter=1000)
)

linear_search = perform_random_search({'LogReg_Opt': logreg}, param_dist, n_iter = 20, scoring=scoring_metrics)
linear_search

Performing RandomizedSearchCV for LogReg_Opt...
Search complete.

	LogReg_Opt
fit_time	0.06576
score_time	0.01142
test_score	0.541532
test_score_std	0.010269
train_score	0.543554
train_score_std	0.003351
logisticregression__C	0.007941
logisticregression__class_weight	balanced

Nonlinear Models

• With 3 non-optimized, non-linear models, only 1 model (LGBM) achieved a f1 score close to the optimized LogisticRegression model.
• RandomForest took a significantly longer time to fit when compared to other models and it’s also the slowest to score. The added computational time did not lead to better model performance.
• With all 3 non-linear models, we see signs of overfitting, with RandomForest being the worst.

models = {
    "RandomForest": RandomForestClassifier(random_state = 123, class_weight = "balanced"),
    "LGBM" : LGBMClassifier(random_state = 123, class_weight = "balanced", verbosity = -1),
    "XGB" : XGBClassifier(random_state = 123, scale_pos_weight=3)
}

nonlinear_results = score_with_metrics(models, preprocessor, scoring=scoring_metrics)

Scoring RandomForest...
Scoring LGBM...
Scoring XGB...
Scoring complete.

pd.merge(linear_search, nonlinear_results, left_index=True, right_index=True, how='inner').sort_values(by='test_score', axis=1, ascending=False)

	LogReg_Opt	LGBM	XGB	RandomForest
fit_time	0.06576	0.323684	0.173091	5.223072
score_time	0.01142	0.009759	0.008081	0.050657
test_score	0.541532	0.537784	0.511432	0.470101
train_score	0.543554	0.663081	0.805722	0.970006

Feature selection

Feature Selection - Linear Model

• For LogisticRegression, feature selection was performed using L1 regularization.
• The regularization did not reduced the number of features. n_features remain at 92.

• This resulted in approximately the same performance (0.54 vs 0.53).

l1_pipe = make_pipeline(
    preprocessor,
    LogisticRegression(penalty='l1',
                       class_weight='balanced',
                       C=0.004795,
                       solver='liblinear',
                       max_iter=20_000)
)

scores = cross_validate(l1_pipe, X_train, y_train, return_train_score=True, scoring=scoring_metrics)
l1_pipe.fit(X_train, y_train)
pd.DataFrame(scores)['test_score'].mean()

pd.DataFrame({'LogReg' :  {'test_score': pd.DataFrame(scores)['test_score'].mean(),
                           'n_features': len(l1_pipe[-1].coef_[0])}})

	LogReg
test_score	0.528995
n_features	92.000000

# Source: Modified based off of DSCI 573 Lab 1 Solution
def feature_selection_with_metrics(models, preprocessor, feature_selector, scoring='f1'):
    """
    Return cross-validation scores and n_features selected for given models as a dataframe.

    Parameters
    ----------
    models : dict
        a dictionary with names and scikit-learn models
    preprocessor: sklearn pipe or estimator
        preprocessor for the model
    feature_selector : sklearn estimator
        estimator to use for feature selection
    scoring : string
        scoring parameter values for cross-validation

    Returns
    ----------
    pd.DataFrame
        Dataframe containing scoring metrics and n_features for all models

    """
    results = {}
    for (name, model) in models.items():
        pipeline = make_pipeline(preprocessor, feature_selector, model)
        print(f"Feature selecting for {name}...")
        scores = cross_validate(
            pipeline, X_train, y_train, return_train_score=True, scoring=scoring
        )
        pipeline.fit(X_train, y_train)
        results[name] = {'test_score': pd.DataFrame(scores)['test_score'].mean(),
                         'n_features': pipeline[1].n_features_
                        }

    print("Feature selection complete.")
    return pd.DataFrame(results)

Feature Selection - Nonlinear Models

• Feature selection was performed using Recursive Feature Elimination with ExtraTreesClassifier as the feature selector.

• This method reduced the number of features significantly but the f1 score remains approximately the same (+/- 1%) as previously.

• The number of features did decrease significantly from 92 to 11. This would help make the model less complex without sacrificing performance.

• The computational time for the feature selection was about 10 minutes per model, even with reduced n_estimators and max_features. This time would multiply with hyperparameter optimization so we will not include feature selection in our pipeline.

• Failed Attempts due to unreasonable computation time :

  • Before the above successed attempts, we experimented feature selection with RandomForestClassifier() as our classifer.
  • We use SequentialFeatureSelector(direction="forward") with both Ridge() and RandomForestRegressor as feature importance estimator.
  • Even with max_feature set to only 10, SFS takes >10 minutes to run Because the number of features after preprocessor is 92, resulting in iterations SFS fits (92 + 91 + 90 +… ) models, which is quite a lot and in total we will fit around 90 models..
  • After switching to RFECV(Ridge()) (Recursive Feature Elimination with Cross-Validation), it takes reasonable time to run, however, the model performance didn’t improve.

# This code block may take time to run (30+ mins)
feature_selector = RFECV(
    ExtraTreesClassifier(
        random_state=123,
        n_estimators=10,
        max_depth=20,
        n_jobs=-1,
        max_features='sqrt'
    )
)
#feature_selection_with_metrics(models, preprocessor, feature_selector, scoring=scoring_metrics)

Hyperparameter optimization

• After hyperparameter optimization, we are on-par with the performance of the optimized linear model in terms of f1 score (0.53 ~ 0.54) but still not exceeding it.
• RandomForest and XGB still has significant overfitting.

param_distributions = {
    'RandomForest_Opt': {
        'randomforestclassifier__n_estimators': [10, 20, 30, 50, 80],
        'randomforestclassifier__class_weight': ['balanced', 'balanced_subsample', None],
        'randomforestclassifier__min_samples_split': [2, 5, 8, 10, 15],
        'randomforestclassifier__max_depth': randint(5,30)
    },
    'LGBM_Opt': {
        "lgbmclassifier__learning_rate": [0.01, 0.1, 0.3],
        "lgbmclassifier__max_bin": [100, 255, 500],
        "lgbmclassifier__num_leaves": [31, 50, 70],
        "lgbmclassifier__class_weight": [None, "balanced"]
    },
    'XGB_Opt': {
        'xgbclassifier__n_estimators': [100, 200, 300, 400],
        'xgbclassifier__max_depth': [3, 5, 7, 10],
        'xgbclassifier__learning_rate': [0.01, 0.05, 0.1, 0.2],
        'xgbclassifier__subsample': [0.6, 0.8, 1.0],
        'xgbclassifier__colsample_bytree': [0.6, 0.8, 1.0],
        'xgbclassifier__scale_pos_weight': [1, 2, 5, 10]
    }
}

estimators = {
    'RandomForest_Opt': make_pipeline(
        preprocessor,
        RandomForestClassifier(random_state = 123)
    ),
    'LGBM_Opt': make_pipeline(
        preprocessor,
        LGBMClassifier(random_state = 123, verbosity = -1)
    ),
    'XGB_Opt': make_pipeline(
        preprocessor,
        XGBClassifier(random_state = 123)
    )
}

search = perform_random_search(estimators, param_distributions, n_iter = 20, scoring=scoring_metrics)

Performing RandomizedSearchCV for RandomForest_Opt...
Performing RandomizedSearchCV for LGBM_Opt...
Performing RandomizedSearchCV for XGB_Opt...
Search complete.

nonlinear_search = search.sort_values(by='test_score', axis=1, ascending=False)
nonlinear_search

	RandomForest_Opt	LGBM_Opt	XGB_Opt
fit_time	0.744666	4.120122	0.421449
score_time	0.019057	0.114484	0.048029
test_score	0.543145	0.542849	0.540934
test_score_std	0.007407	0.00958	0.011278
train_score	0.595513	0.606512	0.598925
train_score_std	0.004063	0.004838	0.002762
randomforestclassifier__class_weight	balanced	NaN	NaN
randomforestclassifier__max_depth	9	NaN	NaN
randomforestclassifier__min_samples_split	10	NaN	NaN
randomforestclassifier__n_estimators	30	NaN	NaN
lgbmclassifier__num_leaves	NaN	70	NaN
lgbmclassifier__max_bin	NaN	255	NaN
lgbmclassifier__learning_rate	NaN	0.01	NaN
lgbmclassifier__class_weight	NaN	balanced	NaN
xgbclassifier__subsample	NaN	NaN	0.600000
xgbclassifier__scale_pos_weight	NaN	NaN	2.000000
xgbclassifier__n_estimators	NaN	NaN	200.000000
xgbclassifier__max_depth	NaN	NaN	5.000000
xgbclassifier__learning_rate	NaN	NaN	0.050000
xgbclassifier__colsample_bytree	NaN	NaN	0.600000

Interpretation and feature importances

Use the methods we saw in class (e.g., permutation_importance or shap) (or any other methods of your choice) to examine the most important features of one of the non-linear models.

best_pipe = make_pipeline(
    preprocessor,
    LGBMClassifier(
        random_state=123,
        verbosity=-1,
        num_leaves=70,
        max_bin=255,
        learning_rate=0.1,
        class_weight='balanced'
    )
)

best_pipe.fit(X_train, y_train)

result = permutation_importance(
    best_pipe,
    X_train,
    y_train,
    random_state=123,
    n_repeats=10,
    n_jobs=-1,
    scoring=scoring_metrics
)

# Source: DSCI 573 Lecture 8 Notes

X_train_perm = X_train.drop(columns=drop_features)
result = permutation_importance(best_pipe, X_train_perm, y_train, n_repeats=10, random_state=123)
perm_sorted_idx = result.importances_mean.argsort()
plt.boxplot(
    result.importances[perm_sorted_idx].T,
    vert=False,
    tick_labels=X_train_perm.columns[perm_sorted_idx],
)
plt.xlabel('Permutation feature importance')
plt.show()

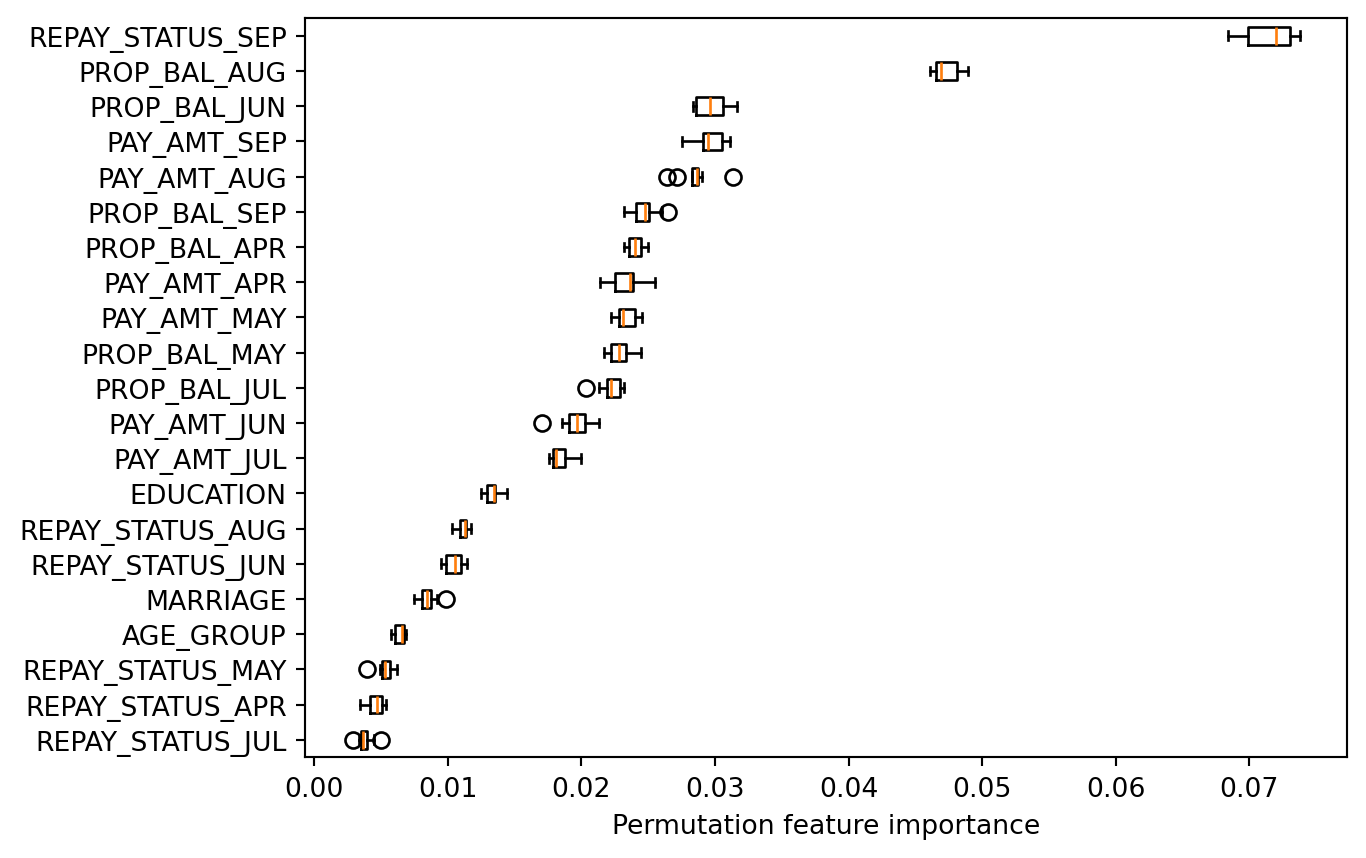

Interpretation of Feature Importance

• Using our best model, the most important feature is REPAY_STATUS_SEP. It makes sense that the customer’s payment status last month will be the biggest predictor of whether they will pay next month. If we go one further back to REPAY_STATUS_AUG and the previous months, the importance drops a lot. Indicating historical repayment status is not as important.
• However historical data on the actual payment PAY_AMT and balance PROP_BAL are useful predictors for whether a customer would default. Other social information such as marriage and age group are not important predictors for default.

Results on the test set

accurancy_score_train = best_pipe.score(X_train, y_train)
accurancy_score_test = best_pipe.score(X_test, y_test)
print("Accurancy score on train data: ", round(accurancy_score_train, 2))
print("Accurancy score on test data: ", round(accurancy_score_test, 2))

y_pred = best_pipe.predict(X_test)
f1_score_test = f1_score(y_test, y_pred, average='binary')
print("F1 score on test data: ", round(f1_score_test, 2))

Accurancy score on train data:  0.87
Accurancy score on test data:  0.77
F1 score on test data:  0.53

pd.merge(linear_search, nonlinear_search, left_index=True, right_index=True, how='inner').sort_values(by='test_score', axis=1, ascending=False)

	RandomForest_Opt	LGBM_Opt	LogReg_Opt	XGB_Opt
fit_time	0.744666	4.120122	0.06576	0.421449
score_time	0.019057	0.114484	0.01142	0.048029
test_score	0.543145	0.542849	0.541532	0.540934
test_score_std	0.007407	0.00958	0.010269	0.011278
train_score	0.595513	0.606512	0.543554	0.598925
train_score_std	0.004063	0.004838	0.003351	0.002762

Final Model

The Logistic Regression model demonstrates stable performance, with both train and test F1 scores around 0.54. In contrast, the Random Forest model shows potential overfitting, with a high train score of 0.97 but a lower test score of 0.47. The LightGBM model exhibits moderate generalizability, with train and test scores of 0.66 and 0.537, respectively. XGBoost, however, shows signs of overfitting, with a train score of 0.73 and a test score of 0.46. Hyperparameter optimization provided minimal improvement in F1 scores for these models.

We choose LightGBM as the best model with optimized hyperparameters, as it achieves a slightly higher validation score compared to the Logistic Regression model and demonstrates stable performance on unseen data.

Optimization Bias

The test F1 score of 0.526 is consistent with the validation score. The accuracy score on the training data is 0.868, and the accuracy score on the test data is 0.767, which shows signs of overfitting.

Although cross validation was used to minimize optimization bias, only optimizing for f1 score could lead to bias in our model. There are signs of this in our model given accuracy was not optimized and shows a lot more overfitting then in our f1 score.

A better approach would be using a combination of scoring metrics for hyperparameter optimization and evaluation. This won’t necessary improve the scoring of our model but would make our model generalize better.

SHAP Example: Positive Prediction

ohe_feature_names = (
    best_pipe.named_steps["columntransformer"]
    .named_transformers_["onehotencoder"]
    .get_feature_names_out(categorical_features)
    .tolist()
)

feature_names = numerical_features + ohe_feature_names

X_train_enc = pd.DataFrame(
    data=preprocessor.transform(X_train).toarray(),
    columns=feature_names,
    index=X_train.index,
)

lgbm_explainer = shap.TreeExplainer(
    best_pipe.named_steps['lgbmclassifier'],
)
lgbm_explanation = lgbm_explainer(X_train_enc)

lgbm_explainer.expected_value

np.float64(-0.6579284098762689)

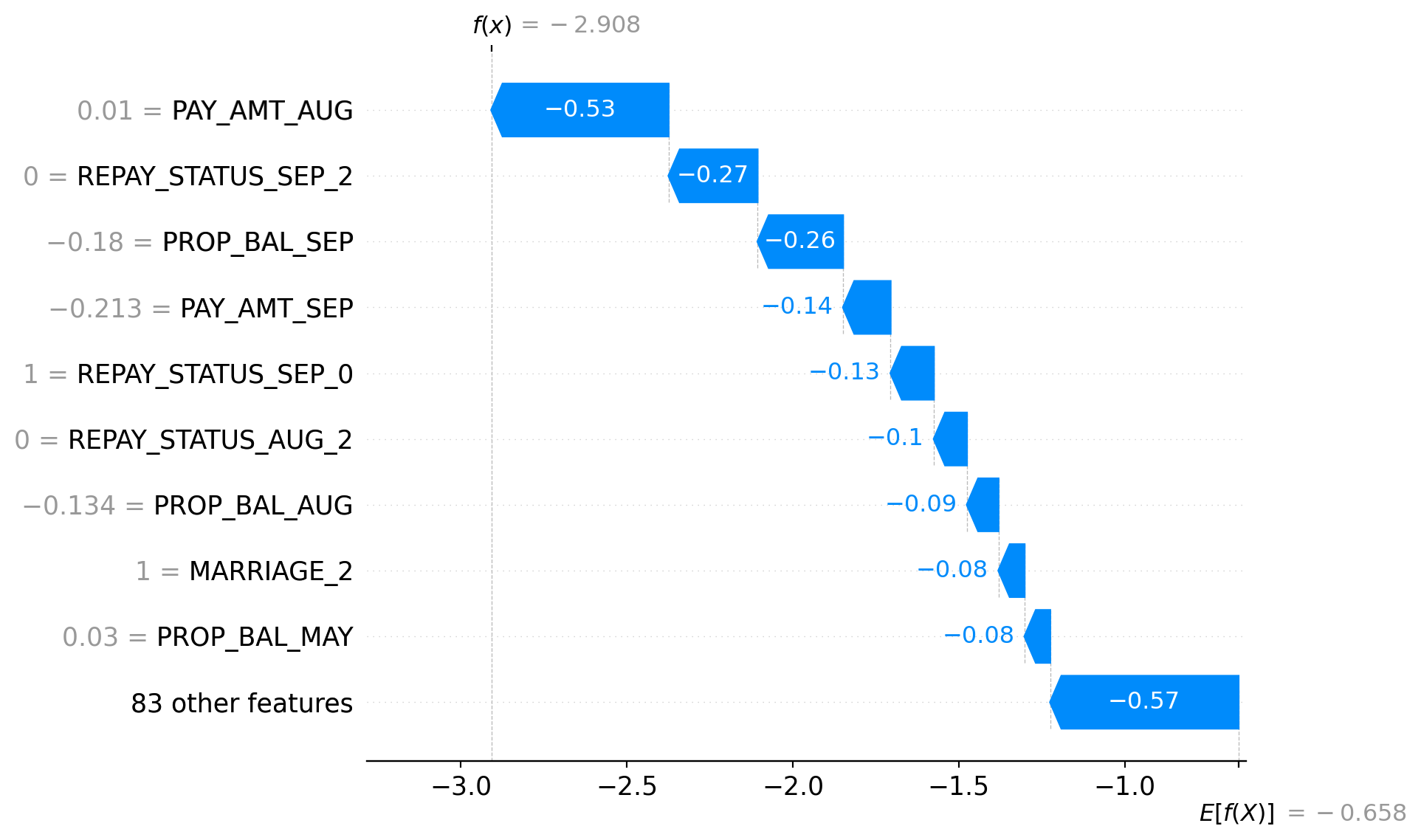

# Example for predicted target = 1, the person will default
print("Predicted value for the 3rd row in the training data: ", best_pipe.named_steps["lgbmclassifier"].predict(X_train_enc)[2])
shap.plots.waterfall(lgbm_explanation[2, :])

Predicted value for the 3rd row in the training data:  1

The above SHAP plot shows an example of how predictions are made. The expected_value from our final model is -0.66. Using this as the threshold, predictiong above the threshold would be a positive prediction (customer defaults) and predictions below the threshold would a negative prediction (no default).

For an example of a positive case, we see PAY_AMT as the largest predictors of whether a customer would default. The PAY_AMT values shown have been rescaled by StandardScaler() so they are not the actual pay amount from the customer. But we can see in general negative values below -0.27 are considered positive predicators for whether a customer would default.

As we saw in our EDA, higher age groups also tend to have more defaults and this is captured in this example where AGE_GROUP_51-50 = 1 is considered a positive indicator for default. More discussion would be required to assess whether judging someone by their age is appropriate.

SHAP Example - Negative Prediction

# Example for predicted target = 0, the person will not default
print("Predicted value for the 106th row in the training data: ", best_pipe.named_steps["lgbmclassifier"].predict(X_train_enc)[105])
shap.plots.waterfall(lgbm_explanation[105, :])

Predicted value for the 106th row in the training data:  0

In contrast to the positive case, we can see that PAY_AMT above the -0.27 threshold are considered negative indicators. This makes sense since customers who pay off their balance more are less likely to default. In addition, REPAY_STATUS_SEP is also a much large predicator in terms of magnitude when compared to the positive example.

Summary of results

Overall our model achieved moderate results at predicting whether a customer would default on credit card payments.

1. F1 score = 0.53 is moderate. It is quite a harmonic mean of precision and recall, suggesting the model is balancing the false negative and false positive equally.
2. Recall score = 0.59, higher than our f1 score. The model identifies about 60% of customers who will actually default. Since the bank will care about default payment more, there’s still a lot of space for improvement.
3. Precision = 0.47. Of all customers flagged, only 47% actually default. This indicates a high false alarm rate by our model’s prediction.
4. Overall Accuracy=0.77 It is a moderately good results but not the best. Since there’s class imbalance, we do have to sacrifice some accuracy in exchange true positive.
5. True negative rate: 0.64/(0.64 + 0.15) ≈ 81%. Our model correctly identifies 81.4% of customers who will pay on time, which is good for the bank, because the bank won’t have to flag reliable customers unnecessarily and waste too much on rick control costs.

Business Implications

• Recall score suggests the model is missing about 40% of actual defaults. This could be costly for bank.
• About 15% customers were incorrectly flagged as defaulters. Bank might cast some unnecessary restrictions for reliable customers who might actually purchase more and pay duly.

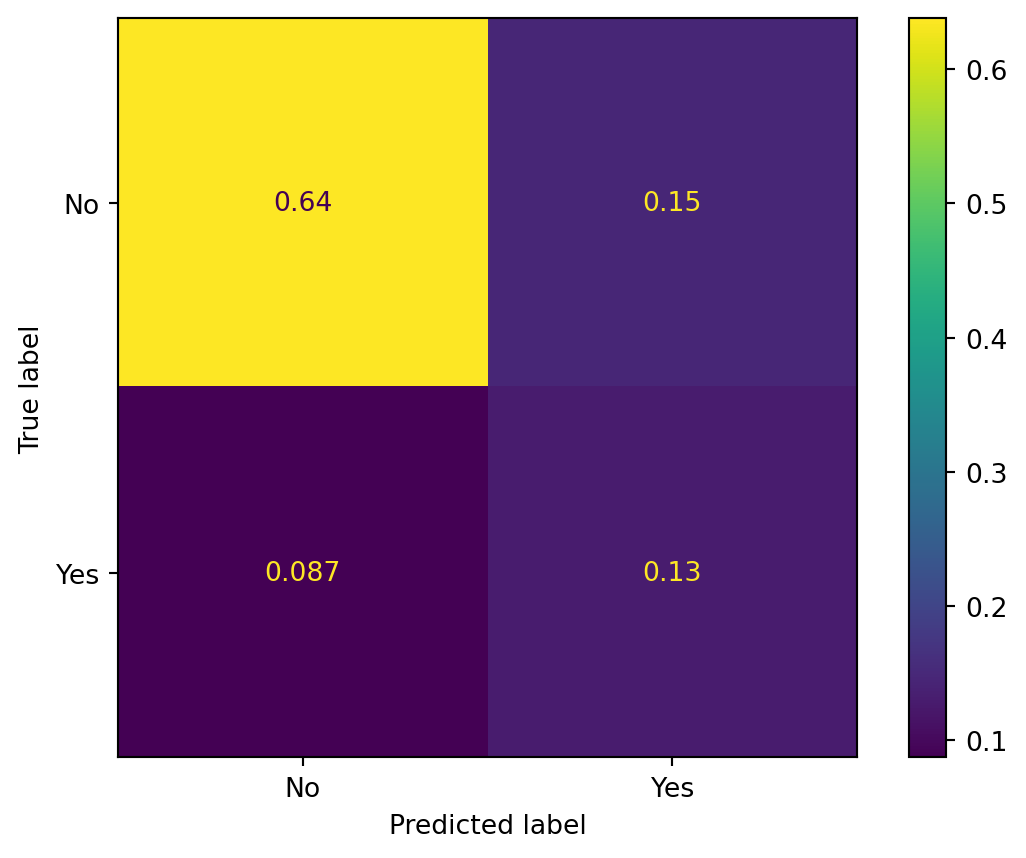

cm = ConfusionMatrixDisplay.from_estimator(
    best_pipe,
    X_test,
    y_test,
    display_labels=['No', 'Yes'],
    normalize='all'
)

round(pd.DataFrame(
    {
        'f1' : [f1_score_test],
        'recall' : [recall_score(y_test, y_pred)],
        'precision' : [precision_score(y_test, y_pred)],
        'accuracy' : [accurancy_score_test]
    }, index=['Score']), 2)

	f1	recall	precision	accuracy
Score	0.53	0.6	0.47	0.77

Ideas for Improvement

• From permutation_importance, REPAY_STATUS was not contributing a lot as a predictor and was making the model more complex due to the OneHotEncoder having to add ~10 columns for every REPAY_STATUS month we include. Dropping these feature and only keeping the most recent month would help make the models less complex.
• Feature selection took up a lot of computational time and we had to reduce n_estimators and max_features for the feature selector in order to make the process manageable. Dropping more features during pre-processing would allow us to use more robust values for the feature selector while also reducing fit time.
• LightGBM and XGBoost models have built in L1 regularizations that could be used for feature selection.
• Threshold assessment to determine if the default threshold is appropriate or it can be improved. Consider adjusting the classification threshold for positive class, if the bank aims to catch more default payments.
• Trying PolynomialFeatures() or interactions for feature engineering to see if performance improves.
• Due the time constraints, we did not try averaging different classifiers or using stacking techniques.
